Graphics, Part V:
And Still More

Creating Lots of Buttons

The very coolest thing about Fireworks graphics files is that they are extremely customizable (is that a word?).

How come? Because Fireworks files are vector graphics--unlike GIFs and JPEGs, which are bitmap graphics. What's that mean?

Read Lynda Weinman's concise but nerdy explanation in Designing Web Graphics.3 (pp. 62-63) if you're really curious.

If you're not, just plow ahead, but know that Fireworks is a vector graphics program that is able to export bitmap graphics files. That's why you export GIF/JPEGs instead of saving them when you're using Fireworks. And if you save in Fireworks, you save in the native Fireworks or PNG format.

In this section we'll continue working with button.png, but make a copy o fit named navbutton.png.

1. Wouldn't it be nice to have three similar buttons that we could use as a navigation bar? Like this:

   Fireworks makes it easy!
2. Open button.png in Fireworks, if it's not already open.

   And save it under a new name: navbutton.png (as in "navigation bar button").
3. The key to creating buttons with similar backgrounds/text is Frames. (Refer back to the tutorial on animation for a refresher course on frames.) If you check the Frames Panel of navbutton.png you'll see that a single frame exists. (Also two layers exist, but we're not going to mess with them.)

4. Duplicate this frame twice. Dragging onto the New Frame icon should do the trick. Do it twice and your Frames Panel will look like this:

   Click on each of the frames to see that you've got three identical frames.
5. Click on to select it.
6. With frame 2 selected, click twice on the text ("mar 203") to bring up the Text Editor:

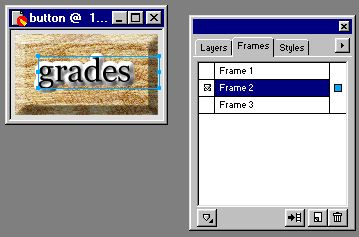

7. Change your text to something else--like "grades"--and the text will change on frame 2 of your image. But it still remains the same on frame 1!

   Click the frames to see the images change for yourself.

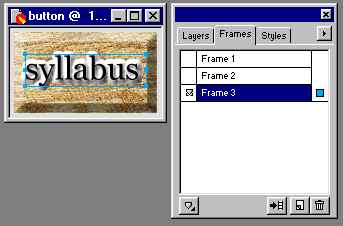

8. Now, do the same with Frame 3--changing the text once again. I changed mine to "syllabus."

9. You're ready to Export your buttons, but there's a trick here. You want the frames to be separate files when they're exported. To get this result, you must choose Export Special from the File menu, and then Layers/Frames to Files.

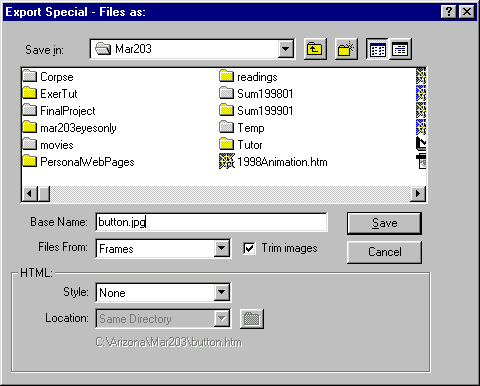

10. This pops up the Export Special - Files as dialog box (see below). In the Files From blank, choose Frames (not layers)--as you'll be exporting three files from three separate frames.

    Type in a Base Name for your files. All of your new files will begin with this name. _F01 will be inserted into the first new file; _F02 into the second and so on.

    Thus, my button.jpg will become


    'Course, I could rename them later if I wanted.

11. The result of this Export Special? I'm glad you asked:

12. My buttons are ready to be sucked into an HTML page--and by applying a little linkage action to my <IMG> tags, I'll have me a fine navigation bar!
13. Try it: Create a new Web page in Dreamweaver and pull your navigation bar into it. Share it with the group when you're finished.


Could there possibly be more?

Why yes, yes there could . . .
